Short Build History
Following is a short, 20 image build history of the prototype
This is a basic functional prototype, it is not weight or performance optimized but instead is a simpler implementation meant for testing the basic geometry and dynamics. The prototype will go through a few design phases, including engine upgrades, and once testing is completed a completely new bike will be built integrating the results of testing with all new, high end components.
The very first welded part of the frame
Testing the engine
An ergonomic mockup
Welded the seat back and triangulated bottom frame
Mockup with tires and engine placement
The virtual pivot point rising front end
With the steering column
The front fork under construction
The foot rests
Front wheel mounted
front fork from welded steel plates to cast aluminum
The front end
Aluminum casting
Welding the head rest cage
Assembled mockup
Building the hardtail rear
New seat and beefed up Virtual Pivot Point front end
Almost a rolling chassis
The rolling chassis
The front end, a new wheel and CNC fork end parts
The rolling chassis with the companies new CNC
19 - 21
<
>

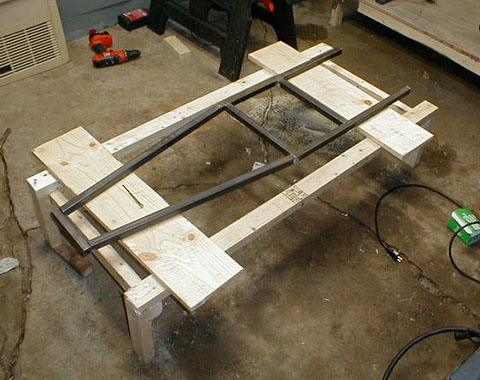

Starting on the base of the frame, as well as a wood working platform. The prototype is made mostly from square tubing to facilitate easier fabrication.

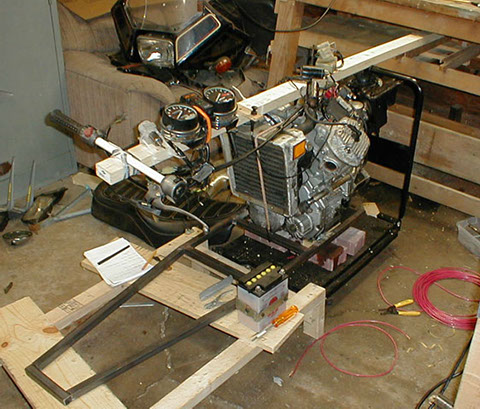

Engine testing

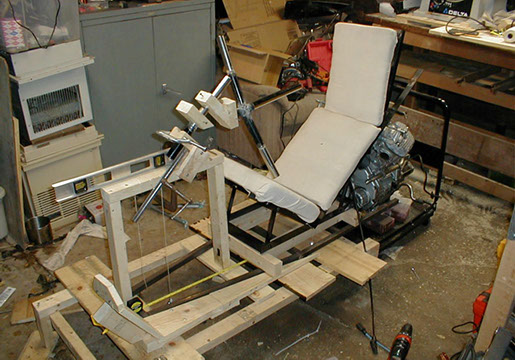

Ergonomic mockup of the seat and steering controls

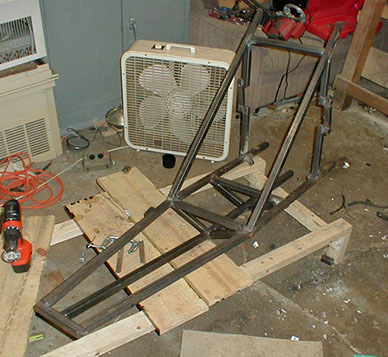

The rear half of the frame in progress as well as the underside triangulation

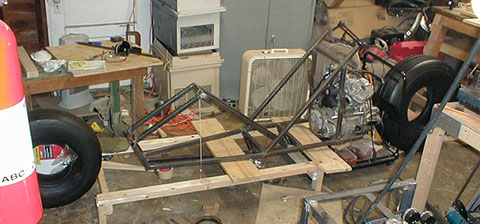

The front of the frame in progress, and wheels stationed to give an idea of what it will look like

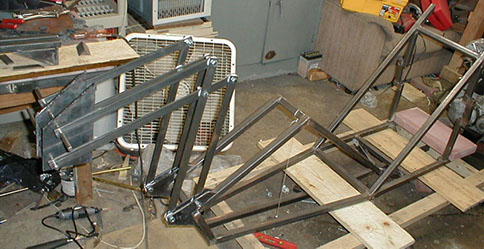

The virtual pivot assembly for raising the front end

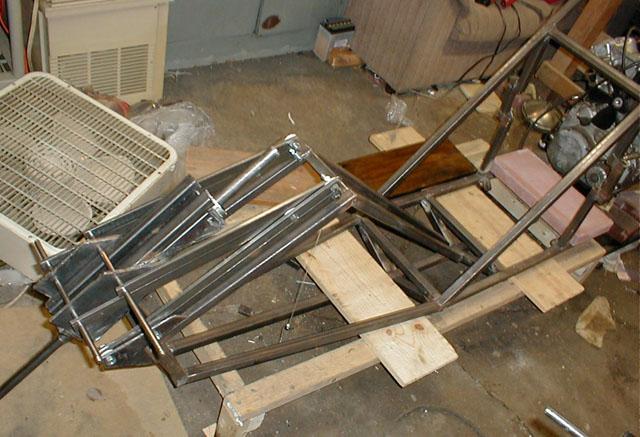

Steering column added

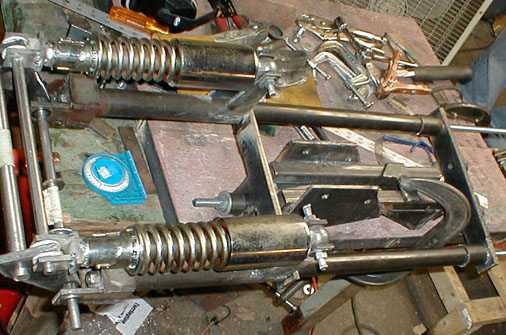

Front fork under construction

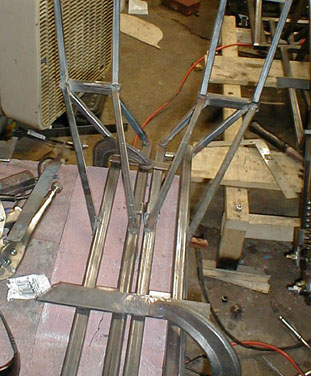

Foot rests

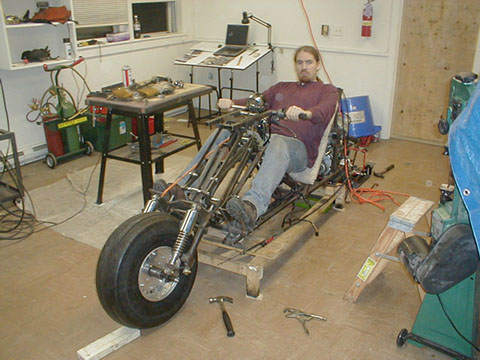

Front wheel mounted, fork and virtual pivot assembly added, with the engine mounted

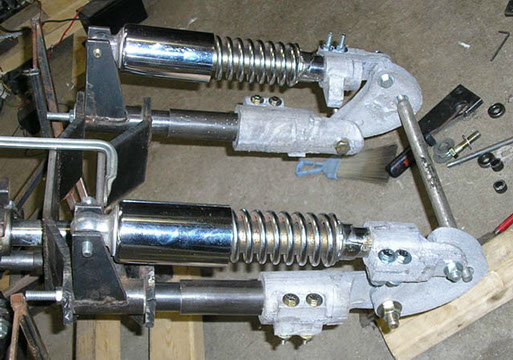

Updating the front fork ends from welded steel to cast aluminum

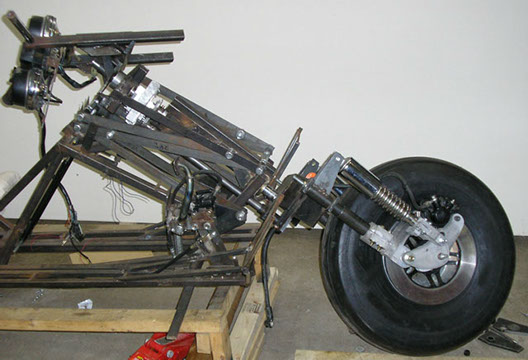

The front end with foot controls and handlebars added

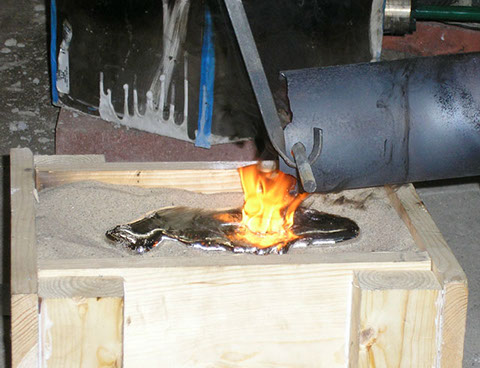

Action shot of aluminum casting

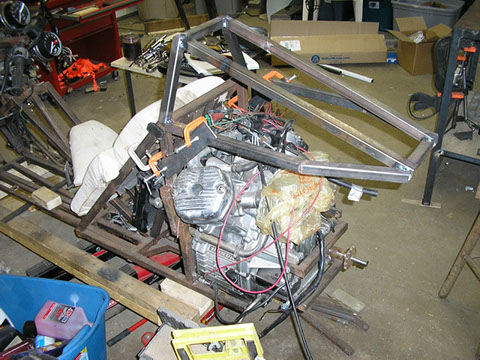

Rear head rest added

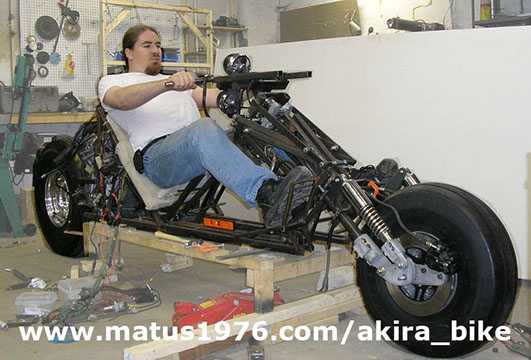

Everything in place for a mockup

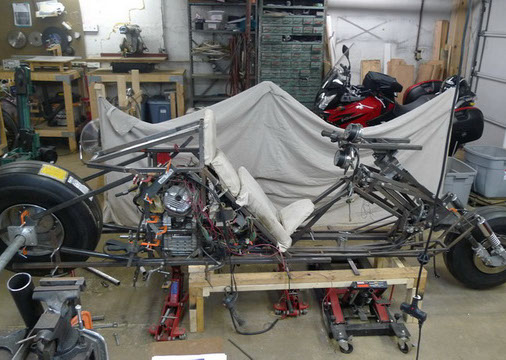

Adding the hardtail and rear wheel mount

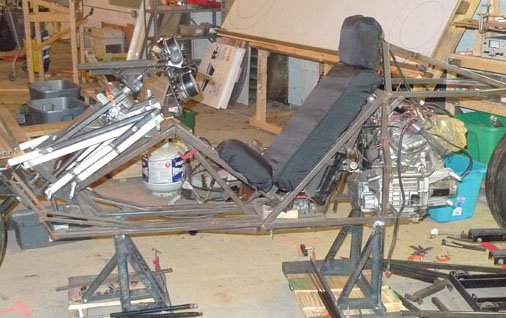

Updating the seat to multilayer foam and nylon covering

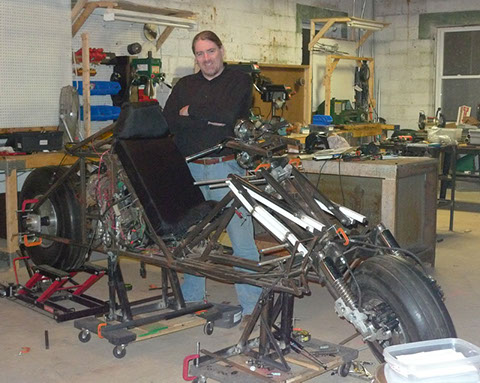

Virtual Pivot point beefed up, resting on the work stands, and rear wheel in place

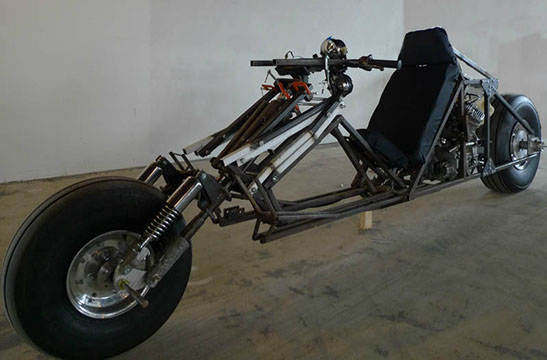

Rolling Chassis

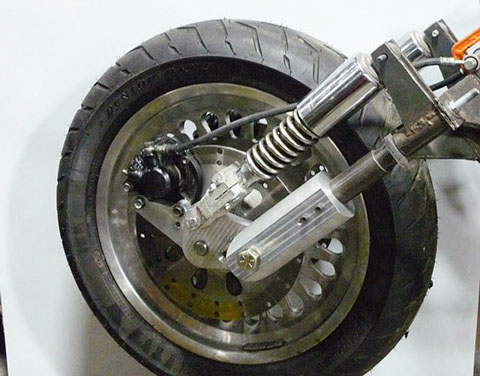

Updated front end with CNC parts and a new front wheel

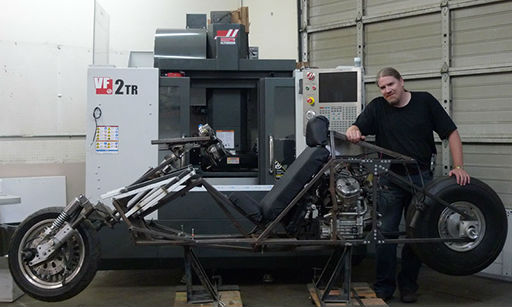

Rolling Chassis with updated front end and myself posing in front of the CNC
See "Progress" for detailed updates
